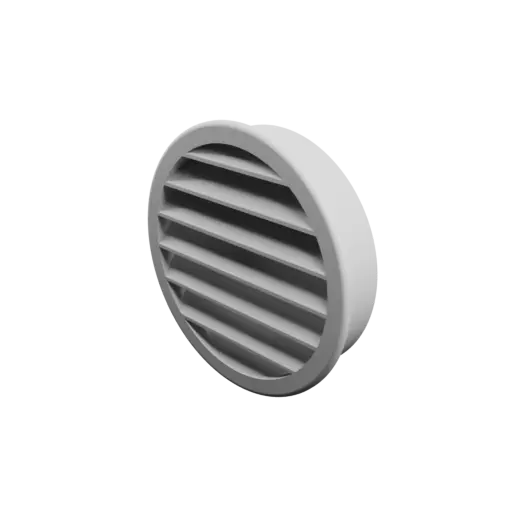

Round air vent STL file ∅ 152 mm, slat angle: 50° with central reinforcement 📦#1298

STL Download STL
Create a new model:
from scratch search for a model
Design of a round vent cover for ventilation in STL format. Its male diameter is 152 mm. The slats have a steep angle of 50° and a high thickness of 2 mm. A centered vertical reinforcement strengthens the whole structure. This vent grille features a thin flange of 3 mm. The total diameter of the model is 158 mm.
Generation date: 2025-07-29
3D Model Round air vent STL file ∅ 152 mm, slat angle: 50° with central reinforcement

3D model download

Free
  • round-air-vent-dia152mm-slD50d_model1298-nb0_dd{id}.stl : 4.5 Mo
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 152 mm
#2 slat angle 50 °
#3 slat thickness 2 mm
#4 flange width 3 mm
#5 central reinforcement yes
Metadata Value
Total diameter (including flange) 158 mm
Total thickness 25 mm
illustration of the parameters
Representation of the parameters

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf
