Custom Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 144×144 mm, thickness 3 mm 📦#12460

STL Download STL 1
Create a new model expert
from scratch search for a model
File in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 144×144 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Generation date: 2026-10-10
3D Model Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 144×144 mm, thickness 3 mm

3D model download

Free
  • round-to-rectangular-adapter-d_model12460-nb0_dd{id}.stl : 946.2 Ko
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 150 mm (≃5.91 in)
#2 cylinder inlet length 30 mm (≃1 3/16 in)
#3 rectangle internal length 144 mm (≃5.67 in)
#4 rectangle internal height 144 mm (≃5.67 in)
#5 rectangle inlet length 30 mm (≃1 3/16 in)
#6 offset Z 0 mm (0 in)
#7 offset Y 0 mm (0 in)
#8 total length 200 mm (≃7 7/8 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 144 mm (≃5.67 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha

Related 3D models

To search for a model based on your own parameters, go to the template page Round to rectangular adapter

Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 220×90 mm, thickness 3 mm (📦 #2671)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 220×90 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀125 mm and a rectangular section with inner dimensions 220×90 mm. The shell thickness is 3 mm and the total length is 200 mm.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 220 mm
rectangle internal height 90 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 230×150 mm, thickness 3 mm (📦 #9717)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 230×150 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 230×150 mm. The wall thickness is 3 mm and the total length is 150 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 40 mm
rectangle internal length 230 mm
rectangle internal height 150 mm
rectangle inlet length 20 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 170×100 mm, thickness 3 mm (📦 #1680)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 170×100 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀102 mm and a rectangular section with internal dimensions 170×100 mm. The wall thickness is 3 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 102 mm
cylinder inlet length 30 mm
rectangle internal length 170 mm
rectangle internal height 100 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×80 mm, thickness 3 mm + offset (📦 #9232)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×80 mm, thickness 3 mm + offset
Download this 3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 150×80 mm. The shell thickness is 3 mm and the overall length is 150 mm. The adapter has an offset of 3 mm along the Y axis and 3 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 80 mm
rectangle inlet length 50 mm
offset Z 3 mm
offset Y 3 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×60 mm, thickness 3 mm (📦 #7972)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×60 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 240×120 mm, thickness 3 mm (📦 #10091)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 240×120 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 240×120 mm. The shell thickness is 3 mm and the overall length is 220 mm. A chamfer is applied on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 25 mm
rectangle internal length 240 mm
rectangle internal height 120 mm
rectangle inlet length 25 mm
offset Z 0 mm
offset Y 0 mm
total length 220 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀149.6 mm to 120×150 mm, thickness 3 mm (📦 #9894)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀149.6 mm to 120×150 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀149.6 mm and a rectangular section with inner dimensions 120×150 mm. The wall thickness is 3 mm and the overall length is 200 mm. A chamfer is present on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 149.6 mm
cylinder inlet length 35 mm
rectangle internal length 120 mm
rectangle internal height 150 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm (📦 #2066)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀125 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

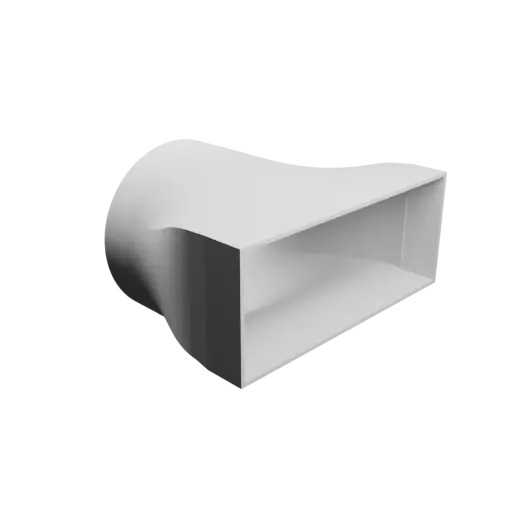

Round-to-Rectangular Tube Adapter STL file ⌀156 mm to 220×90 mm, thickness 3 mm + offset (📦 #11750)
