Custom Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 216×86 mm, thickness 2 mm + offset 📦#11736

STL Download STL 1
Create a new model expert
from scratch search for a model
Model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 216×86 mm. The shell thickness is 2 mm and the overall length is 90 mm. The adapter has an offset of 15 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Generation date: 2026-09-15
3D Model Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 216×86 mm, thickness 2 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model11736-nb0_dd{id}.stl : 4.4 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 150 mm (≃5.91 in)
#2 cylinder inlet length 30 mm (≃1 3/16 in)
#3 rectangle internal length 216 mm (≃8 1/2 in)
#4 rectangle internal height 86 mm (≃3 3/8 in)
#5 rectangle inlet length 30 mm (≃1 3/16 in)
#6 offset Z 15 mm (≃0.59 in)
#7 offset Y 0 mm (0 in)
#8 total length 90 mm (≃3.54 in)
#9 thickness 2 mm (≃0.08 in)
#10 chamfer chamfers on the outside
of the cylindrical tube
and on the inside of
the rectangular tube
Metadata Value
Cylinder internal diameter 146 mm (≃5 3/4 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha

Related 3D models

To search for a model based on your own parameters, go to the template page Round to rectangular adapter

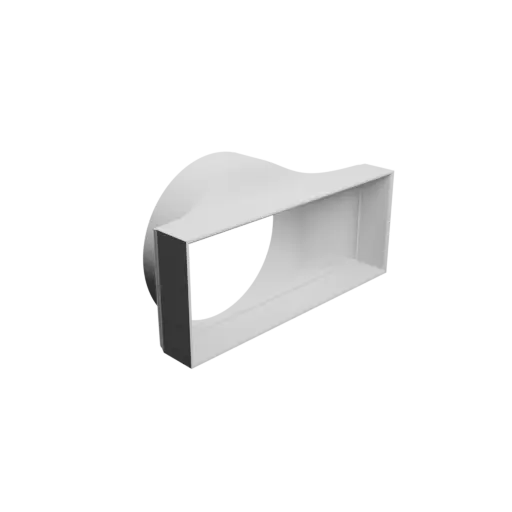

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 216×86 mm, thickness 3 mm + offset (📦 #11832)
