Enclosure with screw-mounted lid: 60×60×60 mm (with ventilation under the enclosure) 📦#1137

2 object(s) STL

Download this enclosure model with a screwed lid in STL format. The dimensions are 60 mm long by 60 mm wide and 60 mm high. The cover only measures 30 mm high. Side thickness is 2 mm. This enclosure has strong cooling area under the base.

◀ ▶

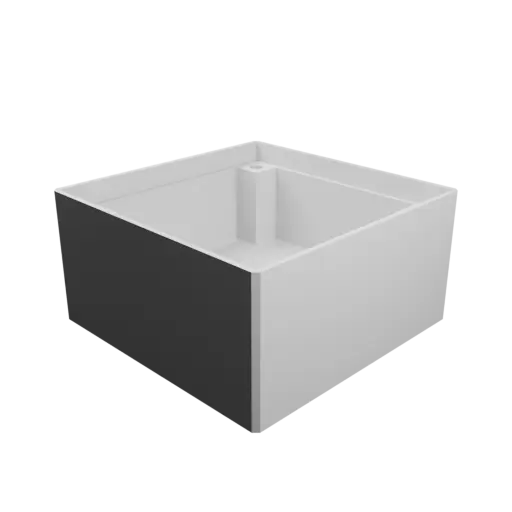

3D Model Enclosure with screw-mounted lid: 60×60×60 mm (with ventilation under the enclosure)

object #0

object #1

3D model download

3D file(s) name:

enclosure-with-screw-mounted-lid-len60mm-wid60mm-Thei60mm-Lhei30mm-waT2mm-Tmrg0.2mm-Imrg0.2mm-cooL10-cooZ2_model1137-nb0_dd{id}.stl
enclosure-with-screw-mounted-lid-len60mm-wid60mm-Thei60mm-Lhei30mm-waT2mm-Tmrg0.2mm-Imrg0.2mm-cooL10-cooZ2_model1137-nb1_dd{id}.stl

Download format: zip

License: CC BY - Creative commons

(attribution - commercial use allowed)

Free download

Values for this model

	Parameter	Value	Unit	Label
#1	length	60	mm	len
#2	width	60	mm	wid
#3	total height	60	mm	Thei
#4	lid height	30	mm	Lhei
#5	wall thickness	2	mm	waT
#6	screw margin	0.2	mm	Tmrg
#7	fit clearance	0.2	mm	Imrg
#8	cooling level	10		cooL
#9	cooling zone(s)	2		cooZ

Representation of the parameters

Notes:

Note that parameters #1 length and #2 width refer to the external dimensions. If you are working with internal dimensions, you will need to add twice the wall thickness.

Parameter #6 screw margin adjusts the diameter of the cylinder into which the screws thread are inserted in the base. By default, its diameter is 3 mm. Depending on the material used, you will likely need to adjust this value so that the thread cuts into the material properly (not too much, not too little).

Parameter #7 fit clearance defines the gap between the two parts for assembly. At 0, both objects are modeled with no clearance at all. It is often recommended to add 0.1 to 0.2 mm for a smooth fit.

Parameter #8 cooling level determines the strength of the ventilation. At 0, no cutouts are applied. At 10, the maximum possible number of cutouts is generated.

Parameter #9 cooling zone(s) defines the location of the cutouts:

0: no cutouts
1: cutouts on the lid
2: cutouts on the enclosure
3: cutouts on both
