Round box with lid ⌀ 120 mm - Height: 25 mm 📦#1116
Loading...
◀
▶
object #0

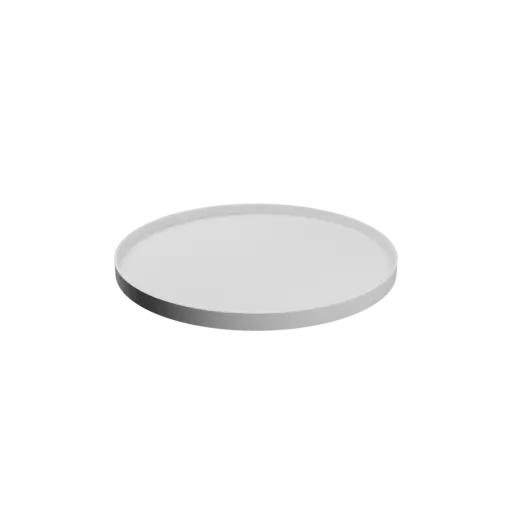

object #1
3D model download
3D file(s) name:
round-box-with-lid-dia120-hgt25-thi2mm-mrg0.1mm-fil0mm_model1116-nb0_dd{id}.stl
round-box-with-lid-dia120-hgt25-thi2mm-mrg0.1mm-fil0mm_model1116-nb1_dd{id}.stl
Download format: zip
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | external diameter | 120 | mm | dia |
| #2 | total height | 25 | mm | hgt |
| #3 | wall thickness | 2 | mm | thi |
| #4 | fit clearance | 0.1 | mm | mrg |
| #5 | inner bottom fillet | 0 | mm | fil |
Representation of the parameters
Notes:
The wall thickness (parameter #3) concerns the walls, but also the bottom of the box and the lid's plate.
