O-ring 3D model #1022

1 object(s) - format STL

This O-ring has an inner diameter of 26 mm and a cross section of 3 mm, resulting in an outer diameter of 32 mm. It is commonly used in assemblies requiring reinforced sealing, particularly in hydraulic systems or setups subject to moderate pressure. Its robust dimensions ensure reliable performance in demanding technical environments.

◀ ▶

Values for this model

	Parameter	Value	Unit	Label
#1	inner diameter (ID)	26	mm	ID
#2	cross section (CS)	3	mm	CS

Representation of the parameters

3D model download

3D file(s) name:

o-ring-ID26mm-CS3mm_model1022-nb0_dd{id}.stl

Download format: zip

License: CC0 - Creative commons

(no copyright - public domain)

Free download

Related 3D models

Model #1030

1 object(s)

- format STL

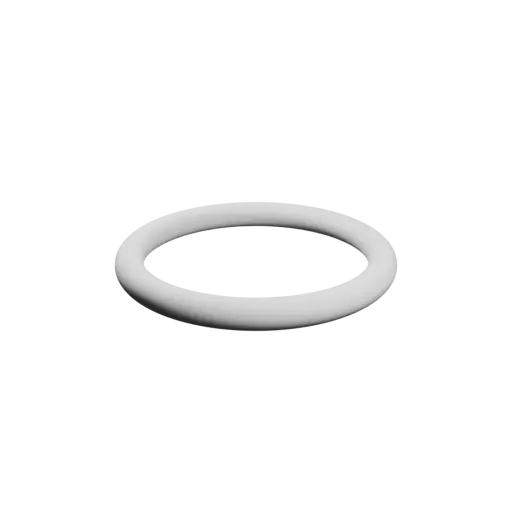

O-ring 20mm 2.5mm

Parameter	Value	Unit
inner diameter (ID)	20	mm
cross section (CS)	2.5	mm

Model #1019

1 object(s)

- format STL

O-ring 17mm 2.5mm

Parameter	Value	Unit
inner diameter (ID)	17	mm
cross section (CS)	2.5	mm

Model #1034

1 object(s)

- format STL

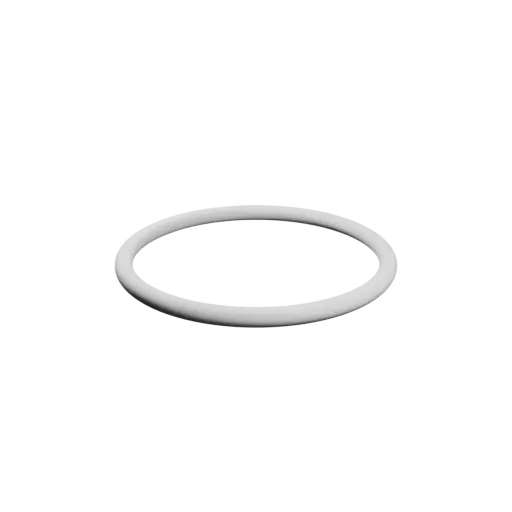

O-ring 37.75mm 2.62mm

Parameter	Value	Unit
inner diameter (ID)	37.75	mm
cross section (CS)	2.62	mm

Model #1018

1 object(s)

- format STL

O-ring 15mm 2.5mm

Parameter	Value	Unit
inner diameter (ID)	15	mm
cross section (CS)	2.5	mm

Model #1038

1 object(s)

- format STL

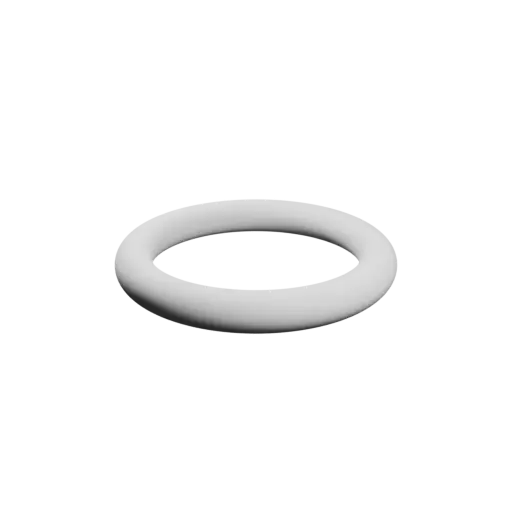

O-ring 14mm 2.5mm

Parameter	Value	Unit
inner diameter (ID)	14	mm
cross section (CS)	2.5	mm

Model #1031

1 object(s)

- format STL

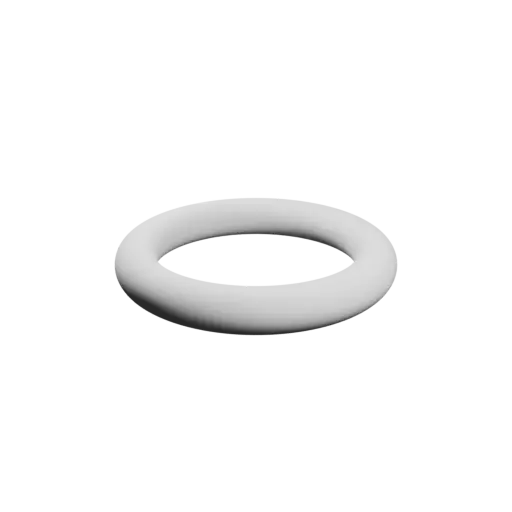

O-ring 12.37mm 2.62mm
